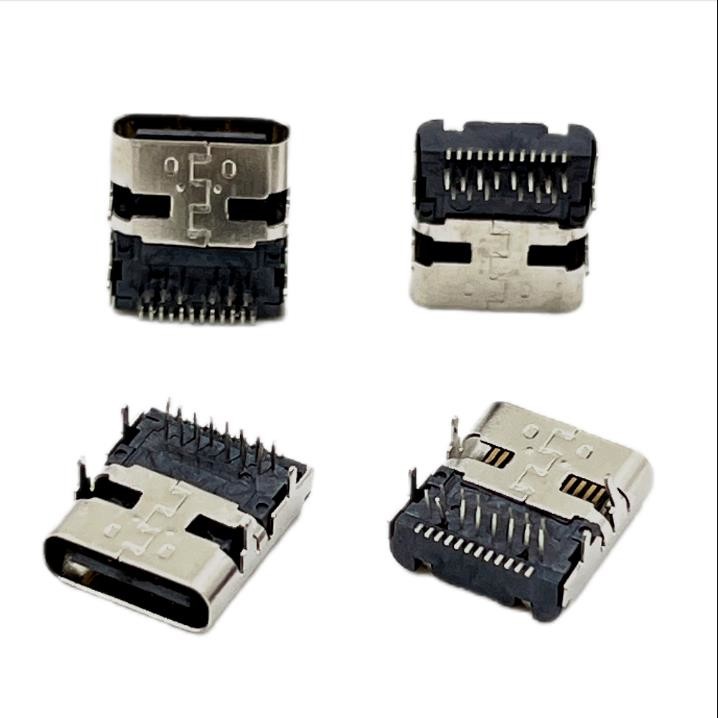

Customized 3.0AMP PCB USB Type C Connectors Female SMD SMT 24 Pin

  • 1
  • 2
  • 3

Brand Name : Jinze

Model Number : UB01F-LBA5N-RHA

Certification : SGS/ROHS

Place of Origin : China

MOQ : 1000pcs

Price : Negotiation

Payment Terms : T/T

Supply Ability : 80000pcs/ Day

Delivery Time : 15-25 Days

Packaging Details : Reel Packaging

Material : LCP+40% GF 94 V-0

Color : Black

Gender : Female

Contacts : Special Copper (C7025; T=0.12mm)

Shell : Stainless Steel(SUS304) T=0.20mm

Mid Plate : Stainless Steel(SUS304) T=0.15mm

Application : PCB

Packing : Reel+Carton

Contact Now

Customized 24 Pin PCB USB Type C Connectors Female SMD SMT

What is a USB Connector?

A USB connector is the socket, port, or jack into which the plug end of a USB cable or USB-powered device is inserted. USB connectors are typically female, while the USB plug on the cable is male.

Rectangular, slot-shaped USB type-A connectors are most common and can be found on computers, personal electronics, and peripherals. This includes keyboards and mice, mobile phones and chargers, memory sticks (flash drives), and other USB accessories.

Specifications:

Current Rating 3.0AMP
Voltage Rating 5V AC
Contact Resistance 40mW Max
Withstanding Voltage 100VAC / Minute
Insulation Resistance 100mW Min
Mating Force 0.5-2.0KGF
Unmating Force 0.8-2.0KGF
Durability Cycle 10000 Cycles
Operation Temperature -55℃ to +85℃
Contact Material Special Copper
Contact Plating Ni+Au+Tin
Insulator Material LCP

Customized 3.0AMP PCB USB Type C Connectors Female SMD SMT 24 Pin

Customized 3.0AMP PCB USB Type C Connectors Female SMD SMT 24 Pin

Customized 3.0AMP PCB USB Type C Connectors Female SMD SMT 24 Pin

UB01F-LBAX0-RHA.pdf, if you need the Drawing, pls download it
